• Neon strip 3D any bending 16_16

3D Any Bending Neon Flex 16*16mm Single color/turnable white/RGB

  • Anti-distortion and strong stretching resistance design, no damage to the LED strip while bending.
  • Any bending, can be Vertical bending (top) or Horizontal bending (side).
  • Waterproof IP67, suitable for indoor and outdoor decorative lighting, e.g. signage.
  • Single color 2700K. 3000K, 4000K, 6000K, Turnable white and RGB are available.
  • Flat surface and bending with min 400mm diameters.
  • Welcome ODM & OEM.
  • Electrical & Optical Data
Power 10W/m (14W/m optional)
Dimensions 5000*16*16mm
Cutting length 50mm
LED quantity 140LEDs/m(single color) ; 240LED/m(turnable white) ; 60LED/m(RGB)
Lumen/m(4000K) 680 lm/m
Voltage 24V dc
Working Mode PWM CV
Color/CCT 2700K/3000K/4000K/6000K / Turnable white2700K-6000K / RGB
Working Temperature -20-45°C
Warranty 3 Years

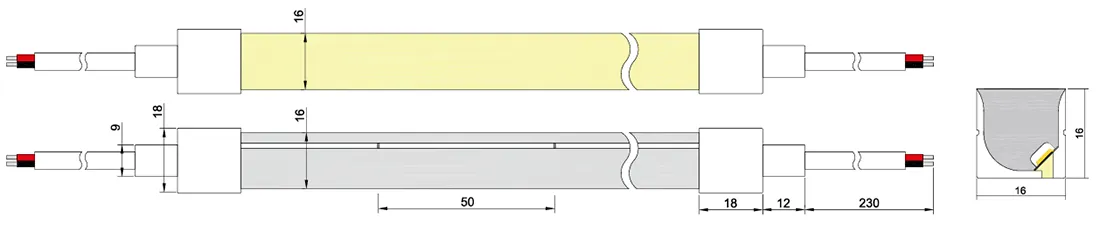

  • Dimensional Drawing
drawing of neon strip 3D Any bending 16_16

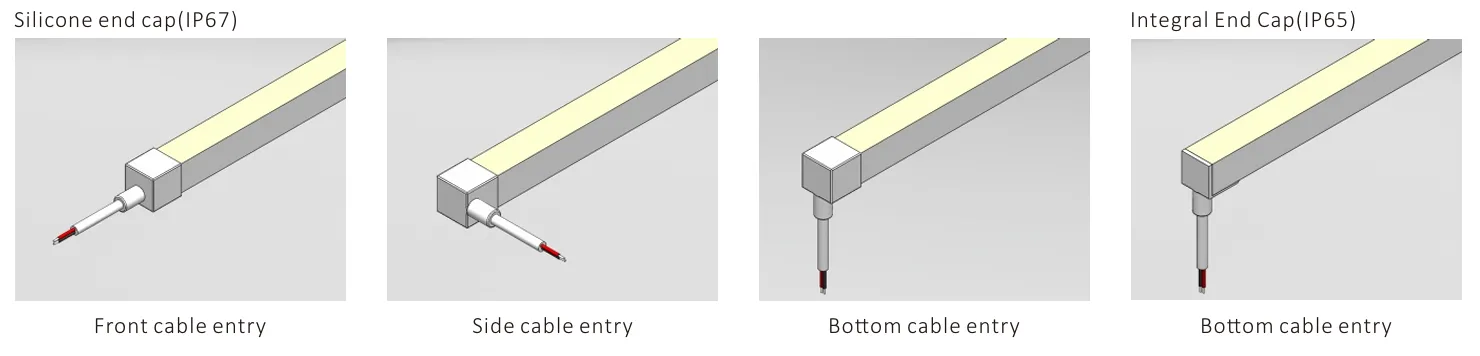

Cable Entry Option

cable entry of 3D Neon strip 1616

  • Modal Information

Product Feature: Neon strip 3D any bending 16*16mm 10W/m 24V CRI>80/90 Single color

Model No. Color.Temp Power lm/m Cutting length Max length
NS1616-2835UWY140-24VW 2700K 10W/m 600 lm/m 50mm 5m
NS1616-2835UWW140-24VW 3000K 10W/m 620 lm/m 50mm 5m
NS1616-2835UWN140-24VW 4000K 10W/m 680 lm/m 50mm 5m
NS1616-2835UW140-24VW 6000K 10W/m 680 lm/m 50mm 5m
NS1616-2835UR140-24VW Red 10W/m 280 lm/m 50mm 5m
NS1616-2835UG140-24VW Green 10W/m 520 lm/m 50mm 5m
NS1616-2835UB140-24VW Blue 10W/m 120 lm/m 50mm 5m
NS1616-2835UY140-24VW Yellow 10W/m 250 lm/m 50mm 5m

Product Feature: Neon strip 3D any bending 16*16mm 10W/m 24V turnable white 2700K-6000K

Model No. Color.Temp Power lm/m Cutting length Max length
NS1616-2835CCT240-24VW 2700K 5W/m 325 lm/m 50mm 5m
6000K 5W/m 345 lm/m 50mm 5m
2700K+6000K 10W/m 670 lm/m 50mm 5m

Product Feature: Neon strip 3D any bending 16*16mm 10W/m 24V RGB

Model No. Color.Temp Power lm/m Cutting length Max length
NS1616-2835RGB60-24VW Red 3.3W/m 83.2 lm/m 100mm 5m
Green 3.3W/m 166.5 lm/m 100mm 5m
Blue 3.3W/m 36.6 lm/m 100mm 5m
RGB 10W/m 310 lm/m 100mm 5m

  • Accessories

End cap with hole

Neon strip connector 3D 1616 from Up-energy Lighting

End cap without hole

3D Neon strip connector 1616 from Up-energy Lighting

Fix clip and
aluminum profiles

Neon strip fix clip and aluminum profile for 1022 from Up-energy Lighting
