• COB RGB Strip 12V 756chips

COB RGB Strip 756chips/m 14W/m 12V 10mm

  • Perfect uniform illumination without dot spot.
  • 140° beam angle and high CRI>90.
  • Easy to install with 3M adhesive tape on the backside
  • Comply with the European ErP EcoDesign regulation.
  • IP Grade: IP20, IP65A, IP67A, IP67C
  • Welcome ODM & OEM
  • Electrical & Optical Data
Power 14W/m
Dimensions 5000*10*1.2mm
Cutting length 23.8mm
LED quantity 756 Chips/m
PCB 10mm
Voltage 12V  dc
SDCM /
Color/CCT RGB
Working Temperature -20-45°C
Warranty 3 Years

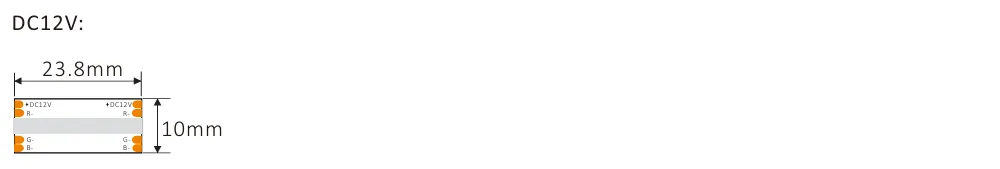

  • Dimensional Drawing
Drawing of COB RGB Strip 12V 756chips
  • Modal Information

Product Feature: COB strip – RGB – 756Chips/m 12V 10mm 14W/m

Model No. Color.Temp CRI Power lm/m Cutting length
FSCOB756RGB-12VN R (620-630nm) / 4.7W/m 180 23.8mm
G (515-525nm) / 4.7W/m 340 23.8mm
B(460-470nm) / 4.7W/m 80 23.8mm
RGB / 4.7W/m 580 23.8mm
