• Neon strip 1022 side emitting from Up-energy Lighting

Horizontal Bending (Side-view) Neon Flex 10*22mm Single color/turnable white/RGB

  • Anti-distortion and strong stretching resistance design, no damage to the LED strip while bending.
  • Waterproof IP67, suitable for indoor and outdoor decorative lighting, e.g. signage.
  • Single color 2700K. 3000K, 4000K, 6000K are available.
  • Flat surface and bending with 200mm diameters.
  • Welcome ODM & OEM.
  • Electrical & Optical Data
Power 10W/m
Dimensions 5000*10*22mm
Cutting length 50mm(24V)/25mm(12V)
LED quantity 140LEDs/m(single color) ; 240LED/m(turnable white) ; 60LED/m(RGB)
Lumen/m(4000K) 390lm/m
Voltage 24V dc
Working Mode PWM CV
Color/CCT 2700K/3000K/4000K/6000K/Turnable white/RGB
Working Temperature -20-45°C
Warranty 3 Years

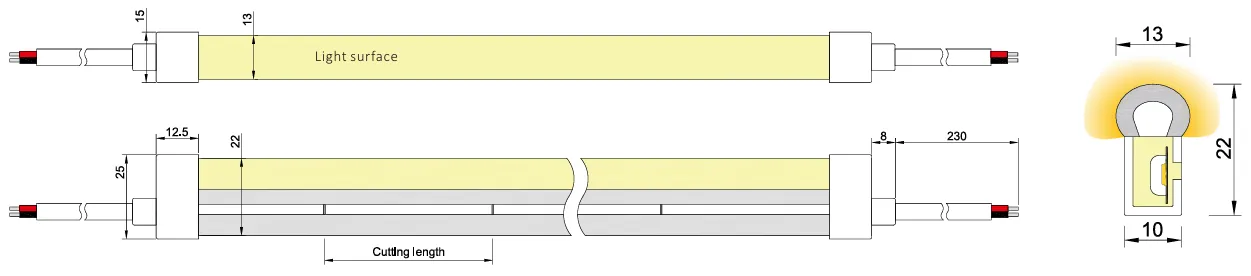

  • Dimensional Drawing
dimensional drawing of neon strip 1022

  • Modal Information

Product Feature: Neon strip horizontal bending 10*22mm 10W/m 24V CRI>80/90 Single color

Model No. Color.Temp Power lm/m Cutting length Max length
NS1022-2835UWY140-24VW 2700K 10W/m 350 lm/m 50mm 5m
NS1022-2835UWW140-24VW 3000K 10W/m 350 lm/m 50mm 5m
NS1022-2835UWN140-24VW 4000K 10W/m 390 lm/m 50mm 5m
NS1022-2835UW140-24VW 6000K 10W/m 380 lm/m 50mm 5m

Product Feature: Neon strip horizontal bending 10*22mm 10W/m 24V turnable white

Model No. Color.Temp Power lm/m Cutting length Max length
NS1022-2835CCT240-24VW 2700K 5W/m 180 lm/m 50mm 5m
6000K 5W/m 190 lm/m 50mm 5m
2700K+6000K 10W/m 360 lm/m 50mm 5m

Product Feature: Neon strip horizontal bending 10*22mm 10W/m 24V RGB

Model No. Color.Temp Power lm/m Cutting length Max length
NS1022-2835RGB60-24VW Red 3.3W/m 33 lm/m 100mm 5m
Green 3.3W/m 99 lm/m 100mm 5m
Blue 3.3W/m 19.8 lm/m 100mm 5m
RGB 10W/m 150 lm/m 100mm 5m

  • Accessories

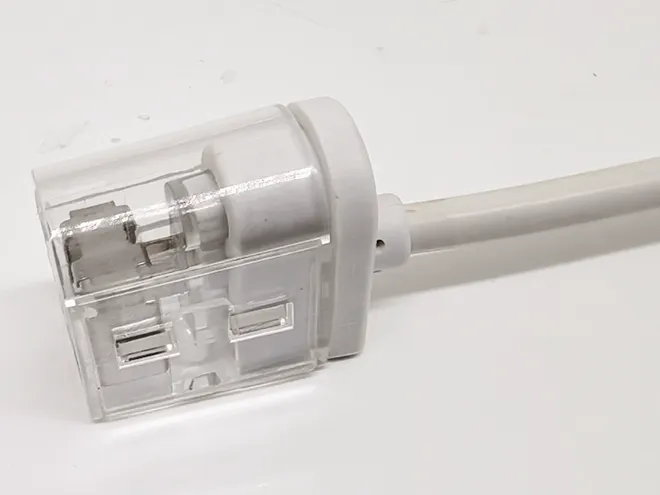

Connector
(PCB to cable)

Neon strip connector 1022 from Up-energy Lighting

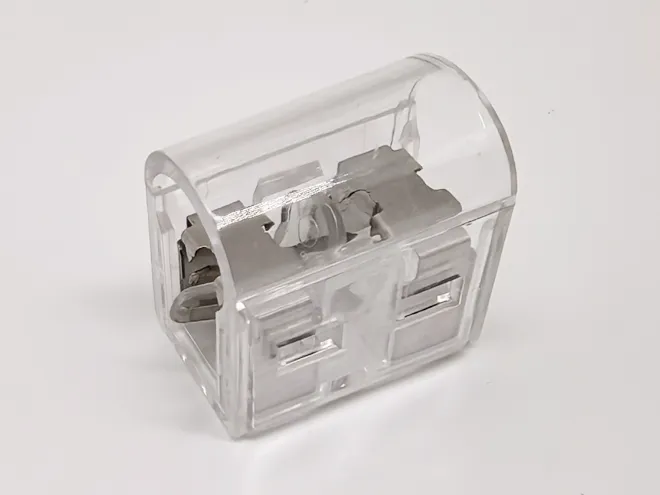

Connector
(PCB to PCB)

Neon strip connector 1022 from Up-energy Lighting

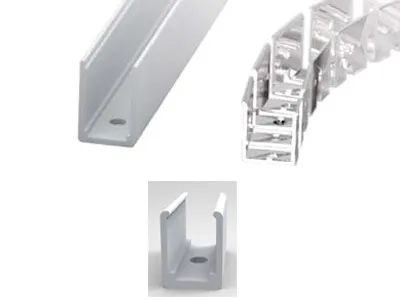

Fix clip and
aluminum profiles

Neon strip fix clip and aluminum profile for 1022 from Up-energy Lighting
