Wall washer (3D) 1616 30° or 30×55° 18W 36LED/m Single color
- TPU material: anti-yellow; High temperature durable; corrosion
resistance; weak acid and alkali resistance; good flexibility; - It can replace the traditional aluminum heavy wall washer or
LED light bar due to its small size, light weight, flexible; - Avariety of beam angles are available, suitable for different
environments/locations; - Can be cut every 7LEDs
- Comply with the European ErP EcoDesign regulation.
| Power | 18W/m |

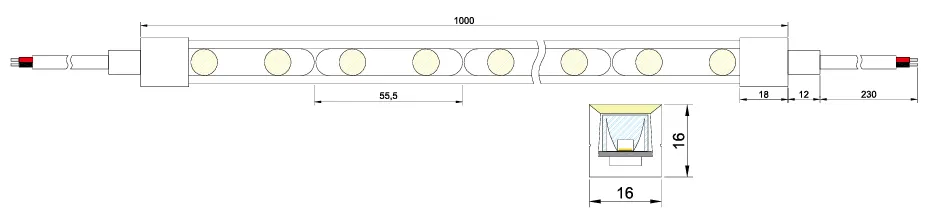

| Dimensions | 5000*16*16mm |
| Cutting length | 55.5mm |
| LED quantity | 36 LEDs/m |
| Lumen/m (4000K) | 1440lm/m |
| Voltage | 24V dc |
| Optic lens | 30° or 30×55° |
| Color/CCT | 2700/3000/4000/6500K/ Red/Green/Blue/Yellow |
| Working Mode | PWM CV |
| Warranty | 3 Years |
Product Feature: Wall washer 3D 1616 18W/m 24V CRI>80/90 IP67 30° or 30×55°
| Model No. | Color.Temp | Power | lm/m | Cutting length | Max length |
|---|---|---|---|---|---|
| NW1616-2835UWY24-24VW | 2700K | 18W | 1350 | 55.5mm | 5m |
| NW1616-2835UWW24-24VW | 3000K | 18W | 1368 | 55.5mm | 5m |
| NW1616-2835UWN24-24VW | 4000K | 18W | 1440 | 55.5mm | 5m |
| NW1616-2835UWU24-24VW | 5700K | 18W | 1404 | 55.5mm | 5m |
| NW1616-2835UR24-24VW | Red | 18W | 234 | 55.5mm | 5m |
| NW1616-2835UG24-24VW | Green | 18W | 936 | 55.5mm | 5m |
| NW1616-2835UB24-24VW | Blue | 18W | 180 | 55.5mm | 5m |
| NW1616-2835UY24-24VW | Yellow | 18W | 216 | 55.5mm | 5m |
Alu clip (3cm)
Alu profile (1m/2m/3m)

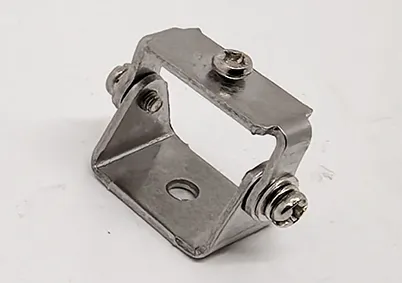

Rotatable bracket

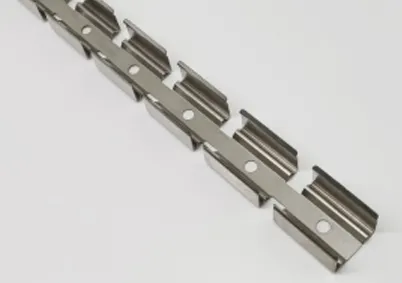

Flexible profile

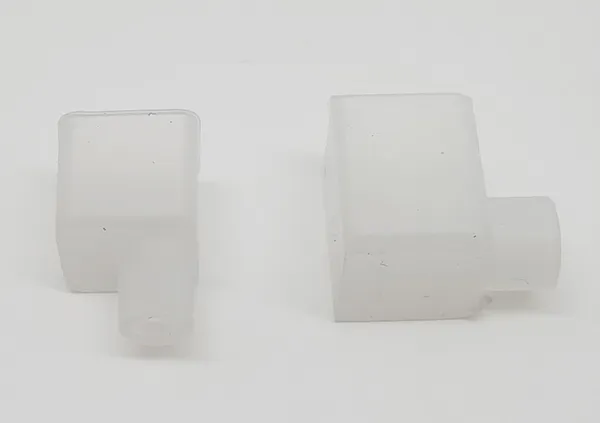

End cap with hole

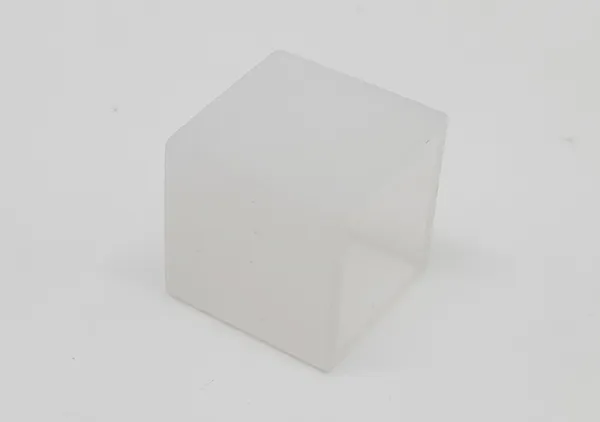

End cap without hole
