LED Linear Module 13mm 190 lm/W 340mm (68LEDs) / 590mm (119LEDs) / 1190mm (238LEDs)
- High Performance with Compatibility
- Highest efficacy, 190 lm/W @ 4000K
- Lengths: 340mm (68LEDs), 590mm (119LEDs), 1190mm (238LEDs)
- Seamless design & re workable poke-in connector
- CCTs: 2700K, 3000K, 3500K, 4000K, 5000K
- Colour consistency (McAdam ellipses) >3
- Adjustable luminous flux, efficacy and lifetime
- Widely used for Indoor Lighting source: Replacement of T5/T8 tubesOffice / Retail / Living spaceTroffer / Linear / Pendant
- Welcome ODM & OEM
| LED | BRIDGELUX/SAMSUNG |
| PCB | 1.5mm aluminum PCB |
| Connector | Wago 2060-451 |
| Input wire cross-section | 26-22 AWG (0.14-0.34 mm²) |
| Wire strip length | 6.5-7.5mm |
| Soldering Temperature | 350°C or lower for a maximum of 5 seconds |
| Maximum Reverse Voltage | Modules are not designed to be driven in reverse bias |
| Rated Lifetime | >50,000 (L70B50) |
| Maximum Drive Current | 1400mA |
| Storage Temperature | -30°C to +85°C |
| Ambient temperature range | -20°C to +75°C |
| Operating Temperature (tc) | 75°C |
| Part Number | Drive Current (mA) | Forward Voltage (V) Minimum |
Forward Voltage (V) Typical |
Forward Voltage (V) Maximum |
| LS34013-68WxxF | 700 | 10.5 | 11.2 | 12 |
| LS59013-119WxxF | 700 | 19 | 19.8 | 21.5 |
| LS119013-238WxxF | 700 | 38.5 | 39.6 | 40.5 |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|

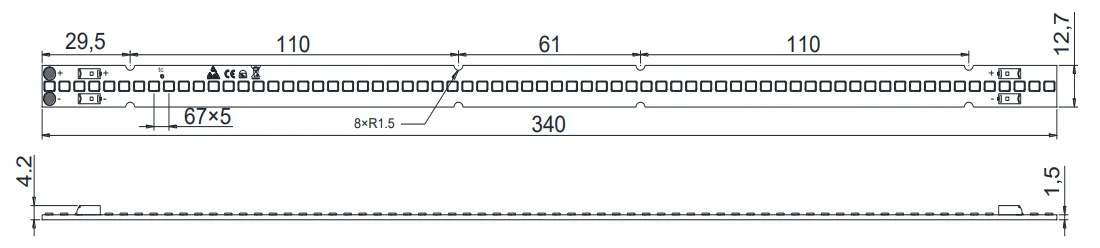

| Module Length | 340 | ±0.8 | mm |
| Module Width | 12.7 | ±0.3 | mm |
| Module Height | 4.2 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 19 | ±2 | g |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|

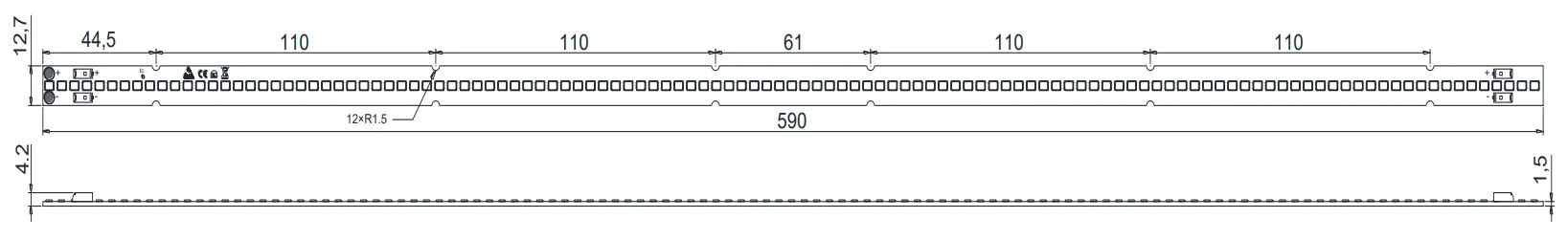

| Module Length | 590 | ±1 | mm |
| Module Width | 12.7 | ±0.3 | mm |
| Module Height | 4.2 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 33 | ±3 | g |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|

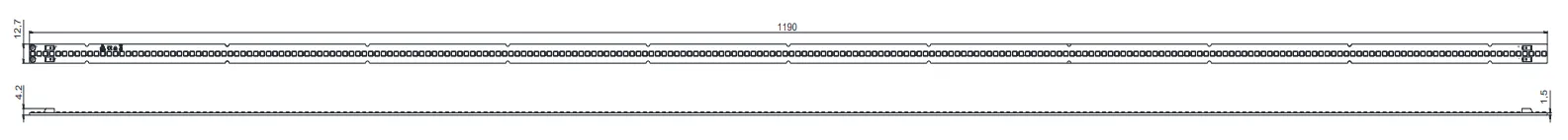

| Module Length | 1190 | ±2 | mm |
| Module Width | 12.7 | ±0.3 | mm |
| Module Height | 4.2 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 65 | ±3 | g |
| Model No. | Nominal CCT (K) |
Typical Flux2 (lm) |
Nominal Drive Current (mA) |
Typical vf (V) |
Typical Power (W) |
Typical Efficacy(lm/W) |
|---|---|---|---|---|---|---|
| LS34013-68W27F | 2700K | 1400 | 700 | 11.2 | 7.8 | 180 |
| LS34013-68W30F | 3000K | 1400 | 700 | 11.2 | 7.8 | 180 |
| LS34013-68W35F | 3500K | 1443 | 700 | 11.2 | 7.8 | 185 |
| LS34013-68W40F | 4000K | 1482 | 700 | 11.2 | 7.8 | 190 |
| LS34013-68W50F | 5000K | 1482 | 700 | 11.2 | 7.8 | 190 |
| LS59013-119W27F | 2700K | 2480 | 700 | 19.8 | 13.8 | 180 |
| LS59013-119W30F | 3000K | 2480 | 700 | 19.8 | 13.8 | 180 |
| LS59013-119W35F | 3500K | 2553 | 700 | 19.8 | 13.8 | 185 |
| LS59013-119W40F | 4000K | 2622 | 700 | 19.8 | 13.8 | 190 |
| LS59013-119W50F | 5000K | 2622 | 700 | 19.8 | 13.8 | 190 |
| LS119013-238W27F | 2700K | 4980 | 700 | 39.6 | 27.7 | 180 |
| LS119013-238W30F | 3000K | 4980 | 700 | 39.6 | 27.7 | 180 |
| LS119013-238W35F | 3500K | 5124 | 700 | 39.6 | 27.7 | 185 |
| LS119013-238W40F | 4000K | 5263 | 700 | 39.6 | 27.7 | 190 |
| LS119013-238W50F | 5000K | 5263 | 700 | 39.6 | 27.7 | 190 |
