LED Linear Module 20mm 190 lm/W 140mm (28LEDs)/280mm (56LEDs)/560mm (112LEDs)/1120mm (224LEDs)
- High Performance with Compatibility
- Highest efficacy, 190 lm/W @ 4000K
- Lengths: 140mm (28LEDs), 280mm (56LEDs), 560mm (112LEDs), 1120mm (224LEDs)
- Seamless design & re workable poke-in connector
- CCTs: 2700K, 3000K, 3500K, 4000K, 5000K
- Colour consistency (McAdam ellipses) >3
- Adjustable luminous flux, efficacy and lifetime
- Widely used for Indoor Lighting source: Replacement of T5/T8 tubesOffice / Retail / Living spaceTroffer / Linear / Pendant
- Welcome ODM & OEM
| LED | BRIDGELUX/SAMSUNG |
| PCB | 1.5mm aluminum PCB |
| Connector | Wago 2060-451 |
| Input wire cross-section | 24-18 AWG (0.2-0.75 mm²) |
| Wire strip length | 7-9mm |
| Soldering Temperature | 350°C or lower for a maximum of 5 seconds |
| Maximum Reverse Voltage | Modules are not designed to be driven in reverse bias |
| Rated Lifetime | >50,000 (L70B50) |
| Maximum Drive Current | 150mA(LS14020-28WxxF) | 300mA(LS28020-56WxxF) | 600mA(LS56020-112WxxF) | 1200mA(LS112020-224WxxF) |
| Storage Temperature | -30°C to +85°C |
| Ambient temperature range | -20°C to +75°C |
| Operating Temperature (tc) | 75°C |
| Part Number | Drive Current (mA) | Forward Voltage (V) Minimum |
Forward Voltage (V) Typical |
Forward Voltage (V) Maximum |
| LS14020-28WxxF | 80 | 38 | 38.5 | 40 |
| LS28020-56WxxF | 160 | 38 | 38.5 | 40 |
| LS56020-112WxxF | 310 | 38 | 38.5 | 40 |
| LS112020-224WxxF | 620 | 38 | 38.5 | 40 |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|
| Module Length | 140 | ±0.4 | mm |
| Module Width | 20 | ±0.3 | mm |
| Module Height | 6 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 13 | ±2 | g |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|
| Module Length | 280 | ±0.8 | mm |
| Module Width | 20 | ±0.3 | mm |
| Module Height | 6 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 25 | ±2 | g |

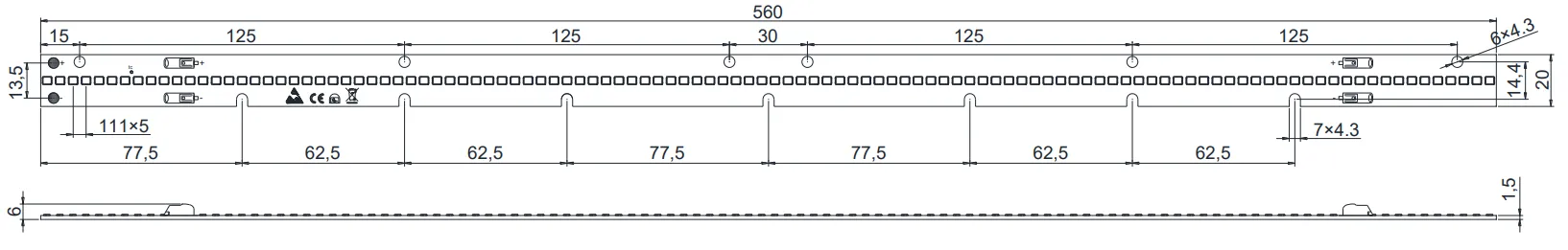

| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|
| Module Length | 560 | ±1 | mm |
| Module Width | 20 | ±0.3 | mm |
| Module Height | 6 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 48 | ±3 | g |
| Parameter | Column 2 | Column 3 | Column 4 |
|---|---|---|---|
| Module Length | 1120 | ±2 | mm |
| Module Width | 20 | ±0.3 | mm |
| Module Height | 6 | ±0.3 | mm |
| PCB Thickness | 1.5 | ±0.15 | mm |
| Module Weight | 94 | ±3 | g |
| Model No. | Nominal CCT (K) |
Typical Flux2 (lm) |
Nominal Drive Current (mA) |
Typical vf (V) |
Typical Power (W) |
Nominal CCT (K) |
|---|---|---|---|---|---|---|
| LS14020-28W27F | 2700K | 540 | 80 | 38.5 | 3 | 180 |
| LS14020-28W30F | 3000K | 540 | 80 | 38.5 | 3 | 180 |
| LS14020-28W35F | 3500K | 555 | 80 | 38.5 | 3 | 185 |
| LS14020-28W40F | 4000K | 570 | 80 | 38.5 | 3 | 190 |
| LS14020-28W50F | 5000K | 570 | 80 | 38.5 | 3 | 190 |
| LS28020-56W27F | 2700K | 1080 | 160 | 38.5 | 6 | 180 |
| LS28020-56W30F | 3000K | 1080 | 160 | 38.5 | 6 | 180 |
| LS28020-56W35F | 3500K | 1110 | 160 | 38.5 | 6 | 185 |
| LS28020-56W40F | 4000K | 1140 | 160 | 38.5 | 6 | 190 |
| LS28020-56W50F | 5000K | 1140 | 160 | 38.5 | 6 | 190 |
| LS56020-112W27F | 2700K | 2160 | 310 | 38.5 | 12 | 180 |
| LS56020-112W30F | 3000K | 2160 | 310 | 38.5 | 12 | 180 |
| LS56020-112W35F | 3500K | 2220 | 310 | 38.5 | 12 | 185 |
| LS56020-112W40F | 4000K | 2280 | 310 | 38.5 | 12 | 190 |
| LS56020-112W50F | 5000K | 2280 | 310 | 38.5 | 12 | 190 |
| LS112020-224W27F | 2700K | 4320 | 620 | 38.5 | 24 | 180 |
| LS112020-224W30F | 3000K | 4320 | 620 | 38.5 | 24 | 180 |
| LS112020-224W35F | 3500K | 4440 | 620 | 38.5 | 24 | 185 |
| LS112020-224W40F | 4000K | 4560 | 620 | 38.5 | 24 | 190 |
| LS112020-224W50F | 5000K | 4560 | 620 | 38.5 | 24 | 190 |
